DC1789A

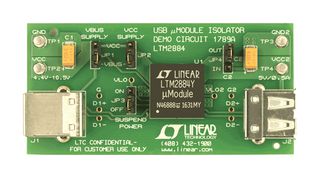

DC1789A is a LTM2884 isolated USB transceiver with isolated power demonstration board. Demonstration circuit 1789A is an isolated USB transceiver with isolated power featuring the LTM®2884. The demo circuit features an EMI optimized circuit configuration and printed circuit board layout. All components are integrated into the µModule® isolator. The demo circuit operates from a supply on VCC and/or VBUS. The part generates an isolated output voltage on VCC2 and communicates all necessary signalling across the isolation barrier through LTC’s isolator µModule technology.

• Operating supply range (isolated power input) 4.4V to 16.5V at TA = 25°C
• Operating supply range (USB Bus power input) 4.4V to 16.5V at TA = 25°C
• Low speed data rate is 1.5MBps
• Full speed data rate is 12Mbps
• Common mode transient immunity is 30KV/µs
