135104-01-06.00

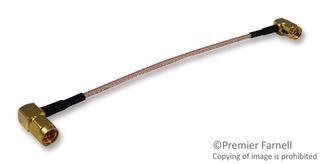

RF / Coaxial Cable Assembly, 90° SMA Plug to 90° SMA Plug, RG316, 50 ohm, 6 ", 152.4 mm, Black
85 more incoming. You can reserve stock now
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €20.020 |
| 10+ | €18.250 |
| 25+ | €17.410 |
| 100+ | €16.750 |
| 250+ | €16.690 |
| 500+ | €16.630 |
Product Information
Product Overview
The 135104-01-06.00 is a 6-inch RG-316/U Coaxial Cable, SMA right angle male to SMA right angle male connectors. Available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. SMA connectors are semi-precision, sub-miniature, high-frequency connectors that offer reliable broadband performance. SMA assemblies on semi-rigid cable are DC to 18GHz and assemblies using flexible cable perform up to 12.4GHz (this varies by cable type). SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR. Conformable/semi rigid assemblies have no heat shrink tubing.
- 50Ω Nominal impedance
- Low VSWR SMA connector
- Semi-rigid assemblies
Applications
RF Communications, Commercial, Industrial
Technical Specifications
SMA Plug, 90°
RG316
50ohm
152.4mm
135 Series
90° SMA Plug to 90° SMA Plug
SMA Plug, 90°
6"
Black
Lead (21-Jan-2025)
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
