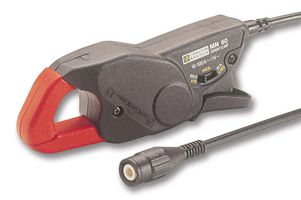

P01120409 is MN60 current clamp model is designed to extend the current measuring capabilities of DMMs, power instruments, oscilloscopes, hand-held scopes, recorders or loggers, and other diverse instruments. It produces a mV signal directly proportional to current. It offers 2 different sensitivities. It fits any oscilloscope since it has a coaxial lead with BNC plug. It has clamping capacity of Ø maximum 20mm cable and 1 busbar of 20 x 5mm busbar. Safety specifications are IEC 1010-1 & IEC 1010-2-032, 300V category III/600V category IV, pollution degree 2, EN 50081-1 class B, EN 50082-2, IEC 1000-4-2, EC 1000-4-3, IEC 1000-4-4, IEC 1000-4-8.

• Peak output voltage rating of 6V
• Current range from 0.1A AC to 20A AC (60A peak)/0.5A AC to 200A AC (600A peak)
• Bandwidth of 40Hz to 40kHz, typical accuracy is ≤ 2%, ≤ 1.5%
• Operating temperature of -10°C to +55°C
• Transformation ratio is 1A/100mV (input), 1A/10mV (output)
• Protection against impacts is IK04 0.5 J (EN 50102), IP40 casing protection rated
• Self-extinguishing capabilities are UL94 V2 (casing), UL94 V0 (jaws)
• Dimension is 128mm x 49mm x 28mm
• Colour is dark grey case with red jaws
• Coaxial cable 2m long, terminated by an insulated BNC connector output

Contents

Current clamp, Operating manual.
