MC34023PG.

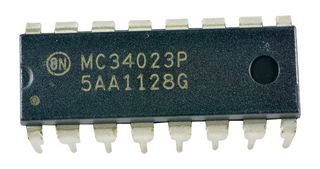

PWM CONTROLLER, 30V, 16-DIP
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Delivery Charge: €25.00 once per order. 3 business days delivery for in stock items.
Product Information
ManufacturerONSEMI
Manufacturer Part NoMC34023PG.
Order Code1143553
Technical Datasheet
Power Supply Controller Type0
No. of Channels1Channels
Control Mode0
Supply Voltage Min10V
Supply Voltage Max30V
IC Case / Package0
No. of Pins16Pins
IC MountingThrough Hole
Switching Frequency Typ0
Switching Frequency Min0
Switching Frequency Max0
Duty Cycle Min0
Duty Cycle Max0
Topology0
Operating Temperature Min0
Operating Temperature Max70°C
Product Range-
Qualification0
MSL-
SVHCNo SVHC (15-Jan-2019)
Automotive Qualification Standard0
Controller IC Case StyleDIP
Frequency400kHz
Input Voltage0
Output Current200mA
Output Voltage0
