SLA-370MT3F
LED, Yellow Green, Through Hole, T-1 (3mm), 20 mA, 2.3 V, 563 nm

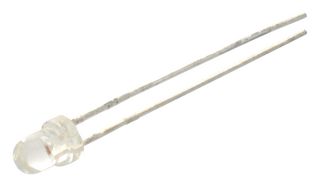

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerROHM
Manufacturer Part NoSLA-370MT3F
Order Code1685002
Technical Datasheet
LED ColourYellow Green
LED MountingThrough Hole
LED Case SizeT-1 (3mm)
Bulb SizeT-1 (3mm)
Forward Current If20mA
Forward Voltage2.3V
Wavelength Typ563nm
Luminous Intensity100mcd
Viewing Angle25°
Lens ShapeRound
Product Range-
Automotive Qualification Standard-
MSL-
SVHCTo Be Advised
Product Overview
The SLA-370MT3FXH is a circular high-brightness high-reliability LED Lamp with transparent colourless resin, made of GaP chip. It is suitable for outdoor displays, coin processing machines, AC servo, network attached storage and DVR/DVS.
- 75mW Power dissipation
- 4V Reverse voltage
- -25 to 85°C Operating temperature range
Applications
Industrial, Portable Devices, Test & Measurement, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
LED Colour
Yellow Green
LED Case Size
T-1 (3mm)
Forward Current If
20mA
Wavelength Typ
563nm
Viewing Angle
25°
Product Range
-
MSL
-
LED Mounting
Through Hole
Bulb Size
T-1 (3mm)
Forward Voltage
2.3V
Luminous Intensity
100mcd
Lens Shape
Round
Automotive Qualification Standard
-
SVHC
To Be Advised
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85414010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000454
