HerstellerSTARTECH
HerstellerteilenummerPEXUSB312EIC
Bestellnummer3446620
ProduktpaletteCompute Module 3+ Series
Auch bekannt alsGTIN UPC EAN: 0065030865494
Technisches Datenblatt
Wird nicht mehr hergestellt.
Produktspezifikationen
HerstellerSTARTECH
HerstellerteilenummerPEXUSB312EIC
Bestellnummer3446620
ProduktpaletteCompute Module 3+ Series
Auch bekannt alsGTIN UPC EAN: 0065030865494
Technisches Datenblatt
ProduktpaletteCompute Module 3+ Series
SVHCTo Be Advised
Produktbeschreibung

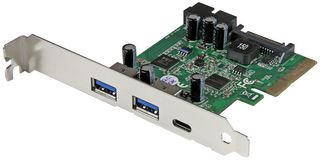

Upgrade your PC with this versatile USB combo card that bridges the gap between modern and legacy devices. Provides 5 USB ports: 1x USB 3.1 Type-C port, 2x external USB 3.0 ports and 2x internal USB3.0 (20-pin IDC) motherboard header ports.
- USB-C port supports speeds up to 10Gb/s, internal and external USB 3.0 ports supports speeds up to 5Gb/s
- SATA power connector for high powered USB devices
- Compliant with UASP for improved performance
- Fully compatible with USB 3.0 and 2.0 devices
- Dual profile design with low profile bracket
- PCI Express (x4) Interface
- Supports Win 7/8/10, Linux 3.5 and Mac OS 10.8+
- 2 Year manufacturer warranty
Lieferumfang
PCI-Express card, LP bracket and user guide
Hinweise
Note: Type-C port is data only, it does not support DP Alt Mode or USB Power Delivery. Maximum throughput is limited by the bus interface; if used with PCI-Ex Gen 1.0 PC, max is 2.5 Gb/s. PCI-Ex Gen 2.0 PC max is 5 Gb/s. PCI-Ex Gen 3.0 PC max is 10 Gb/s.
Technische Spezifikationen
Produktpalette
Compute Module 3+ Series
SVHC
To Be Advised
Technische Dokumente (1)
Gesetzgebung und Umweltschutz
Herkunftsland:
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.Herkunftsland:China
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.Herkunftsland:China
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.
Tarif-Nr.:84718000
US ECCN:EAR99
EU ECCN:NLR
RoHS-konform:Ja
RoHS
RoHS-Phthalate-konform:Ja
RoHS
SVHC:To Be Advised
Produkt-Konformitätszertifikat herunterladen
Produkt-Konformitätszertifikat
Gewicht (kg):.12
