EV-ADES1830CCSZ

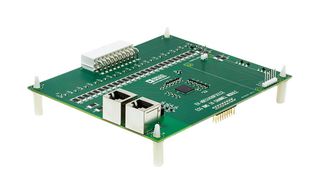

EV-ADES1830CCSZ is an evaluation board to evaluate the ADES1830 16-channel multicell battery monitor. Multiple boards can be linked through a 2-wire isolated serial interface (isoSPI®) to monitor a long series of cells in a stack. The EVADES1830CCSZ also features reversible isoSPI enabling a ring communication path. The printed circuit board (PCB), components, and connectors are optimized for low electromagnetic interference (EMI) susceptibility and emissions. The EV-ADES1830CCSZ can communicate with a PC by connecting to the AD-APARD32690 microcontroller via the SPI pins.

• Full featured demonstration board for the ADES1830
• Built features: demonstrates the high performance measurements of the ADES1830
• Two isoSPI® ports for reversible isoSPI® support
• Daisy-chain capability
• isoSPI® connections through simple RJ45 to RJ45 connectors or RJ45 to DuraClik® connectors
• Compatible boards: AD-APARD32690 microcontroller

Lieferumfang

EV-ADES1830CCSZ 16-channel multicell battery monitor, isoSPI® DuraClik® to RJ45 cable, Ethernet RJ45 cable, 20-pin connector housing to connect to battery stack, 2-pin header jumper.
