DPM970

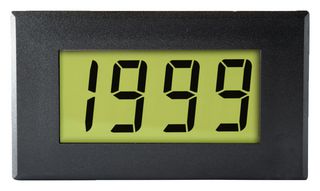

The DPM970 is a Large AC LCD Voltmeter features a 3-1/2-digit LCD with 19mm digit height and LED backlighting. With 500VAC full scale reading, auto-zero and auto-polarity and screw terminal connections, this meter can be fitted into a panel via the bezel, window and clips provided. This is a popular part, normally stocked in high quantity and suitable for new designs. Calibration is achieved via two multi-turn potentiometers for offset and scale. Connection to the meter is via screw terminals. The module is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.

• Digital hold function which freezes the last displayed reading
• Screw terminal connections
• Digital hold
• Measures voltage and current
• 3 Samples/sec rate

Anwendungen

Industrie, Takt & Timing, Messtechnik, Tragbare Geräte
